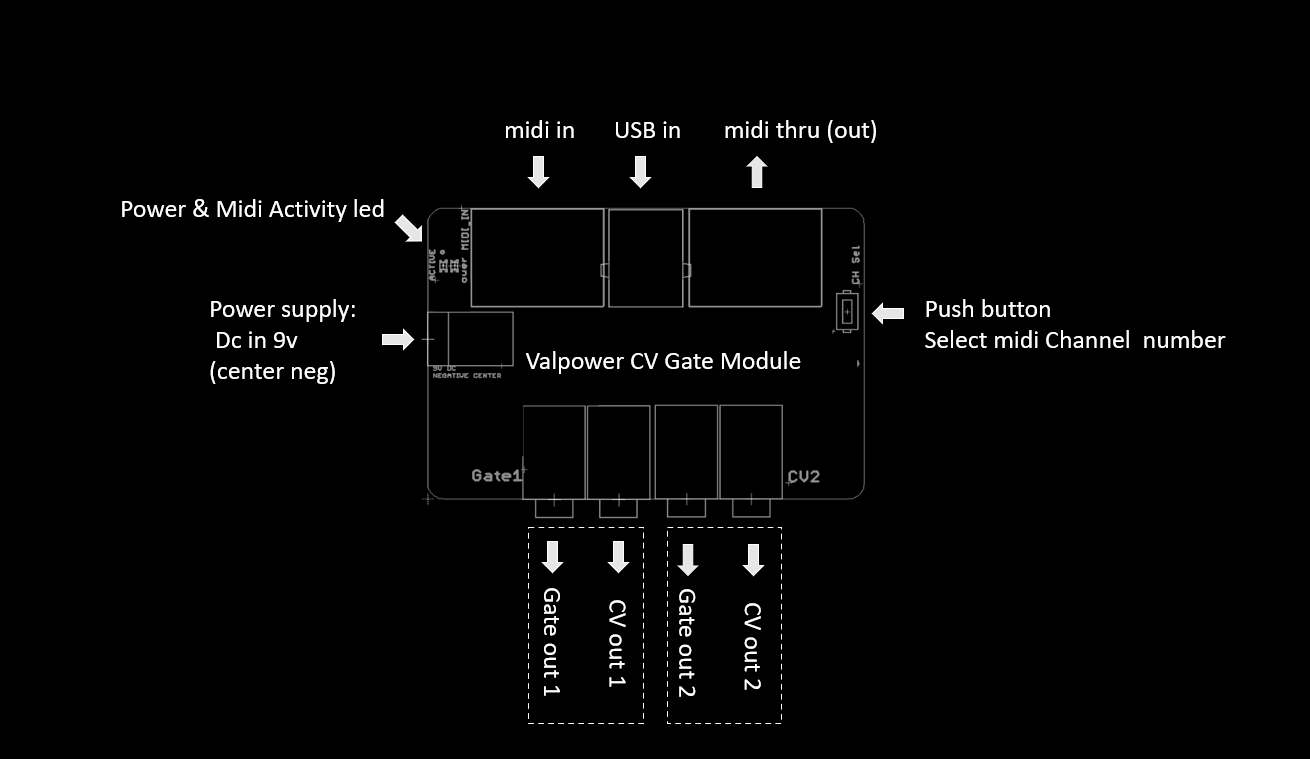

2 channel CV/GATE midi & usb module

What is it?

• improved 2 channel CV/gate with usb , midi and midi thru.
• yes , it can run 2 syths at same time !!!
• Runs on windows and Mac
• Is fully assembled just plug to your synth and ready to go.

Features

• midi & usb input:  it can be operated standard midi (5 pin din connector) or usb
• midi thru: it has midi thru connector , to chain other equipment.
• midi channel: can be selected with push button.
• Power supply :  it can be powered on usb or on external power supply (9v center neg)
• 2 CV outs : 0v to 4v  =>  4 octaves
• 2 gates outputs:  low 0v , high +8v.

SYNTH MODEL compatibility:

• ROLAND SH-101
• ROLAND MC-202
• ROLAND TB-303 (moded version)
• Pro one
• Many others !!

NOTICE:

• Cables not included
• Power supply not included
• Plexy glass cover and fixations are shipping unmounted
• Shipping worldwide now !!!
